Round pin sleeve

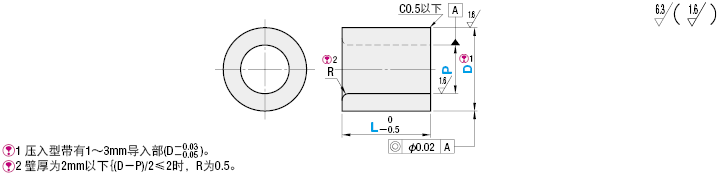

Bushings for inspection jigs Straight type

bushing

Standard processed products

Product name: round pin sleeve

Material: SKD11 etc.

Surface treatment: nickel plating, chrome plating, etc.

Remarks: can be customized

Features:

1. Full rust prevention

2. Good wear resistance

3. High accuracy

4. Exquisite appearance, etc.

E-mail:jenny@goodingjp.com

Product Description:

[ M ]Material [ H ]Hardness [ S ]
Surface Treatment
①P, L Selectable ②P, L Configurable

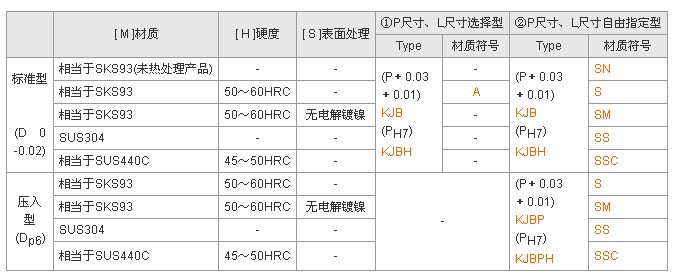

Type Material Code Type Material Code
Standard
Type

(D   0
-0.02)
SKS93 Tool Steel (JIS) Equivalent (Raw Material) - - (P+0.03
+0.01)
KJB
(PH7)
KJBH
- (P+0.03
+0.01)
KJB
(PH7)
KJBH
SN
SKS93 Tool Steel (JIS) Equivalent 50~60HRC - A S
SKS93 Tool Steel (JIS) Equivalent 50~60HRC Electroless Nickel Plating - SM
304 Stainless Steel - - - SS
440C Stainless Steel 45~50HRC - - SSC
Press Fit
Type
(Dp6)
SKS93 Tool Steel (JIS) Equivalent 50~60HRC - - (P+0.03
+0.01)
KJBP
(PH7)
KJBPH
S
SKS93 Tool Steel (JIS) Equivalent 50~60HRC Electroless Nickel Plating SM
304 Stainless Steel - - SS
440C Stainless Steel 45~50HRC - SSC
[ ! ]Some combinations are unavailable. Refer to the price list to select the available combination

Specifications

Part Number - P - L
Type Material Code D
KJB
KJB
A
S
16
10
-
-
P12
P3.97
-
-
L15
L10
P H7
2.00~ 3.00 +0.001
0
3.01~ 6.00 +0.012
0
6.01~10.00 +0.015
0
10.01~18.00 +0.018
0
18.01~30.00 +0.021
0
30.01~32.00 +0.025
0
■①P, L Selectable: Select Type, Material Code, D Dimension (For details, refer to ordering example below).
Part Number P L R
Type Material Code D

(P+0.03
+0.01)
KJB
A 10 3 10 1.0
4 10 15
5 10 15
6 10 15 0.5
8 15
12 6 15 2.0
8 15 20 0.5
10 15
16 10 15 20 2.0
12 15 20 0.5

Part Number P L R
Type Material Code D
(PH7)
KJBH
A 10 4 10 15 1.0
5 15
6 15 0.5
12 6 15 2.0
8 15 20 0.5
16 8 20 2.0
10 15 20
13 20 25 0.5
■②P, L Configurable
Part Number P
0.01mm Increment
L
1mm Increment
R
Type Material Code D
Standard Press Fit

SN
S
SM
SS
[ ! ]3
SSC

S
SM
SS
[ ! ]3
SSC
8 2.00~ 6.00 5~40

When P<5
L≤Px4
When P≥5
L≤Px3
1.0
Standard Type 10 2.00~ 8.00
(P+0.03
+0.01)
(PH7) 12 4.00~10.00 2.0
KJB KJBH 16 8.00~14.00
Press Fit Type 20 10.00~18.00
(P+0.03
+0.01)
(PH7) 25 15.00~23.00
KJBP KJBPH 30[ ! ]4 20.00~27.00
35[ ! ]4 25.00~32.00
[ ! ]3 For 304 Stainless Steel, there must be a 2mm or greater wall thickness {(D-P)/2≥2}. [ ! ]4 D=30 and 35 are applicable to SKS93 Tool Steel (JIS) (except electroless nickel plating) only.
